The Ultimate Guide to CSL-Style Yellow DRLs for BMW G80 M3 & G82 M4 (US Spec 11-Pin Explained)

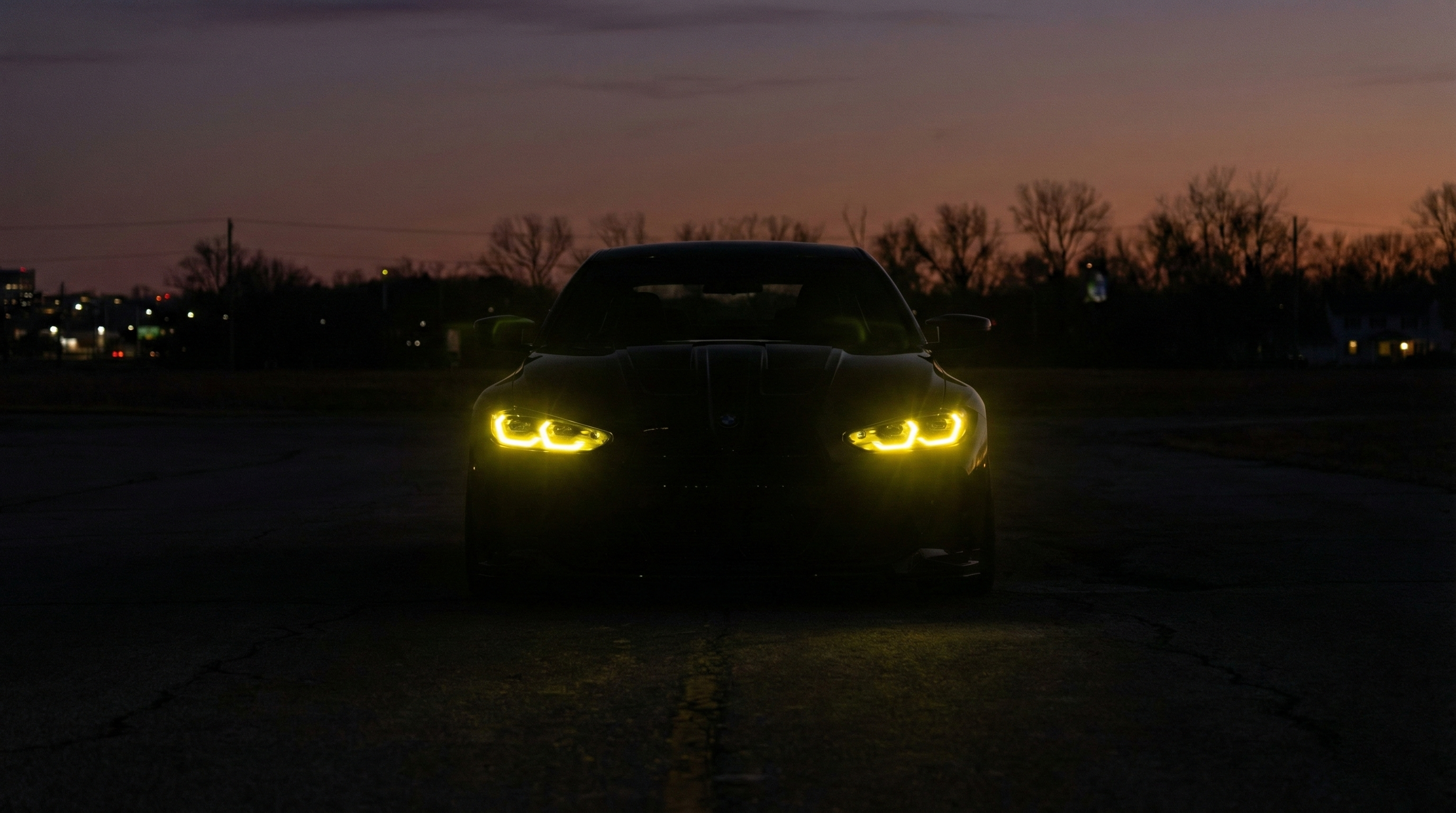

The BMW M4 CSL is a masterpiece, but one detail, in particular, has captured the hearts of enthusiasts worldwide: the Motorsport Yellow Daytime Running Lights (DRLs). Evoking the spirit of GT racing cars, these yellow lights give the G8X platform an aggressive, track-ready presence that standard white LEDs simply can't match.

For owners of the standard G80 M3 or G82 M4 in North America, upgrading to CSL-style yellow DRLs is one of the most popular visual mods today. However, it’s also one of the most confusing.

If you’ve been browsing forums or eBay, you’ve likely seen warnings about "9-pin" vs. "11-pin" connectors, burnt light tubes, and error codes.

In this guide, we’ll clear up the confusion and explain exactly what North American Spec (US/Canada) owners need to look for to ensure a safe, plug-and-play installation.

1. The "Trap": 9-Pin vs. 11-Pin Connectors

This is the #1 reason for returns and installation failures.

BMW uses different headlight manufacturers and specifications for different regions.

• International Spec (EU/Asia): Typically uses a 9-pin DRL connector on the low-beam module.

• North American Spec (US/Canada): Most G8X M3/M4 models with Laserlights delivered to the US and Canada use an 11-pin connector.

Why does this matter? The pin layout is physically different. If you buy a generic "Global" version from a random seller, the plug simply won't fit your US-spec car. Even worse, forcing it could damage the delicate pins on your headlight control module.

At Asign Motorsport+, we specifically engineered our modules for the North American market. Our [CSL-Style Yellow DRL Module Set] comes with the correct 11-pin connector, ensuring a direct fit for your US-spec Laserlights without any sketchy wiring adapters.

2. Thermal Management: Why "Pre-Applied Adhesive" Matters

You might have seen horror stories on Bimmerpost about aftermarket DRL modules burning out or, worse, scorching the expensive acrylic light tubes inside the headlight (a $3,000+ mistake).

This usually happens for two reasons:

1. Poor chip quality (overheating).

2. Improper installation (lack of thermal transfer).

The OEM LED boards are bonded to a heatsink to dissipate the massive heat generated by the diodes. Many aftermarket kits require you to buy a tube of thermal paste (like for a PC CPU) and apply it yourself. If you apply too little, the chip burns. If you apply too much, it spills onto the circuits.

The Asign Solution: We eliminated the guesswork. Our modules come with pre-applied special thermal adhesive.

• Consistency: The layer is machine-applied for perfect thickness.

• Ease of Use: Just peel the liner and stick it to the heatsink.

• Safety: Ensures optimal heat transfer, protecting your headlights from heat damage.

3. Yellow vs. Amber: Getting the Color Right

There is a fine line between "Motorsport Yellow" and "Turn Signal Orange."

True CSL DRLs should have a distinct Lemon Yellow hue—cool, sharp, and aggressive. Cheap alternatives often reuse standard amber LEDs, making your car look like its hazard lights are permanently stuck on.

Our modules are calibrated to match the specific wavelength of the M4 CSL factory lights, giving you that authentic "GT3 car for the road" aesthetic.

4. Installation: Do I Need to Remove the Bumper?

For most G80/G82 owners, the answer is no.

While the official BMW procedure might suggest removing the bumper, many DIY enthusiasts access the DRL modules through the wheel well liner (fender liner).

1. Jack up the car and remove the front wheel.

2. Remove the plastic fender liner screws.

3. Reach behind the headlight to access the heatsink.

It’s a tight squeeze, but it saves hours of labor and avoids the risk of misaligning your front bumper. Since our kit is Plug & Play with no error codes, once you swap the boards, you're done. No coding required.

Final Thoughts

Upgrading to Yellow DRLs is the single most impactful visual modification you can make to the front of your G8X. But it’s crucial to buy the right part for your region.

Don't risk your $4,000 Laserlights with generic parts. Choose the Asign Motorsport+ 11-Pin Kit, designed specifically for your North American BMW.
